In stock Mitras Large Aluminum Face-Fix Overbox
Mitras Meterboxes

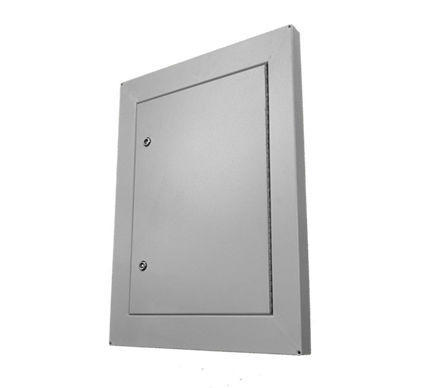

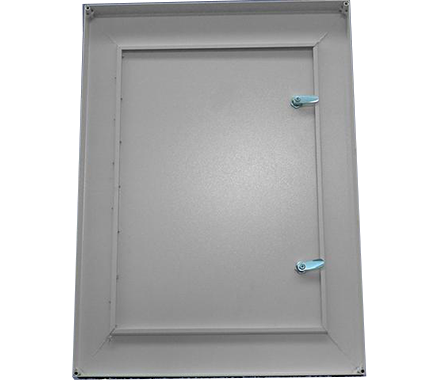

Mitras Large Aluminum Face-Fix Overbox

IS5044
£156.60 +VAT £187.92 inc VAT
Price per unit
In stock — despatched next working dayOrder before 2pm for same-day despatch.

Quantities above 16 are quoted on a schedule of rates.

  • UK stockManufactured and Stocked in the UK
  • 30-day returnsUnfitted and in original packaging

Description

The Mitras 910015 Large Aluminium Face-Fix Overbox is designed as a repair solution for existing recessed meter boxes. It is fixed directly to the brickwork surrounding the recessed meter box, allowing a damaged or unsightly enclosure to be covered without removing the original box.

Manufactured from white powder-coated aluminium, the Mitras IS5044 provides a larger face-fix option for installations where additional coverage is required. The manufacturer datasheet gives approximate external dimensions of 600mm wide x 850mm high x 50mm deep, with fixings supplied.

Before ordering, check the dimensions of the existing recessed meter box and the available surrounding brickwork to ensure the overbox is suitable for the installation.

Key Features

  • Large face-fix overbox for existing recessed meter boxes
  • Mitras model number 910015
  • Product code IS5044
  • Designed as a meter box repair solution
  • Fixes directly to the brickwork surrounding the existing recessed meter box
  • Manufactured from powder-coated aluminium
  • White finish
  • Fixings supplied
  • Approximate dimensions: 600mm wide x 850mm high x 50mm deep

Installation

The Mitras 910015 Large Face-Fix Overbox is screwed directly onto the brickwork surrounding the existing recessed meter box. This allows the existing meter box to remain in place while the overbox provides a new external enclosure.

Ensure there is sufficient sound brickwork around the existing meter box for secure installation and check the overall dimensions before ordering.

Product Specifications

Brand Mitras
Product Code IS5044
Model Number 910015
Product Type Large Aluminium Face-Fix Meter Box Overbox
External Width 600mm approx.
External Height 850mm approx.
External Depth 50mm approx.
Material Powder-Coated Aluminium
Colour White
Installation Type Face-fixed to brickwork surrounding the existing recessed meter box
Fixings Supplied

Important Compatibility Information

This product is a large face-fix overbox designed to fit around an existing recessed meter box. It is not a complete replacement meter box. Check the existing meter box dimensions and surrounding brickwork carefully before ordering.

Download Product Datasheet

Delivery & returns Delivery & pallet terms

Despatched next working day by tracked courier. Free delivery over £75 ex VAT. 30-day returns on unfitted items in original packaging.

Pallet deliveries are kerbside; booked-in slots and timed deliveries by arrangement. Made-to-order items are non-returnable.

You may also need

  • BS 8499

    Domestic gas meter enclosures — dimensions, ventilation and door security.

  • BS 8567

    Domestic electricity meter enclosures — the electric equivalent.

  • PRS 8

    Former National Grid pattern for domestic gas boxes. Still the reference for replacements.

  • PRS 35 (Dec 2008)

    Commercial gas enclosures — minimum 3% free ventilation area and material performance.
