Gas Cabinet No.2 Wall Mounted – for U16 Low Pressure Gas Meters

Gas Cabinet No.2 Wall Mounted – for U16 Low Pressure Gas Meters

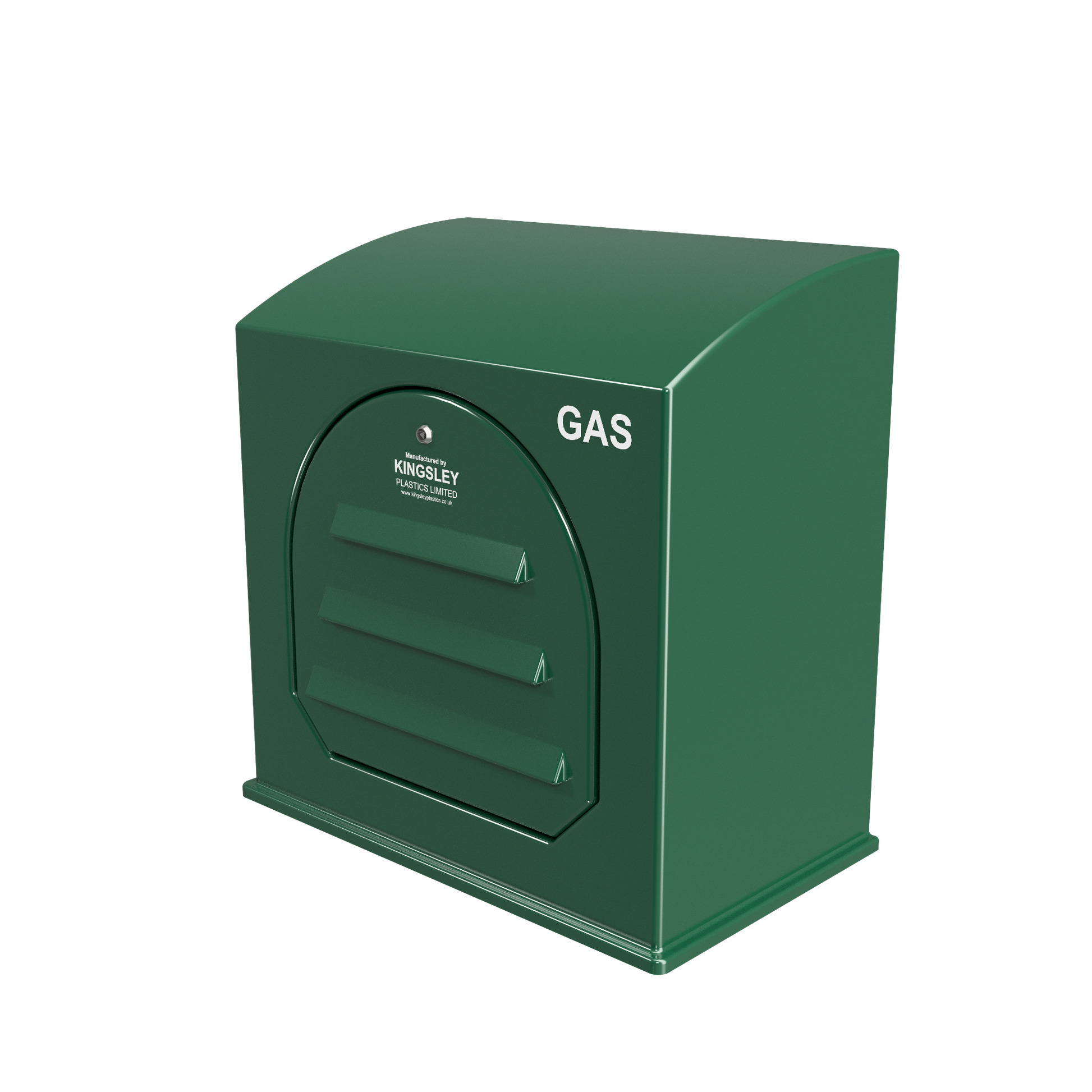

The Gas Cabinet No.2 Wall Mounted is a GRP gas cabinet designed to house U16 low pressure gas meters.

It measures 730mm wide x 435mm deep x 745mm high and is supplied with PRS35-compliant ventilation as standard. The cabinet includes a Kingsley-designed removable vented door with a triangular quarter-turn lock and key.

Internal GRP fixing flanges and the necessary wall-fixing bolts are supplied with the cabinet. When installing, the cabinet must be positioned at least 150mm below the nearest window or obstruction to allow safe removal of the front panel and access to the meter.

Key details

• External dimensions: 730mm W x 435mm D x 745mm H
• Designed for U16 low pressure gas meters
• PRS35-compliant ventilation supplied as standard
• Removable vented door with triangular quarter-turn lock and key
• Internal GRP bolting-down flanges
• Wall-fixing bolts included
• Standard colour: RAL 6005 Moss Green
• Other RAL colours available with additional cost and lead time
• 20-year guarantee for retention of stability
• Expected life in excess of 20 years

Supplied with

• 1 x Gas Cabinet No.2 Wall Mounted
• 1 x vented removable door with triangular lock and key
• All necessary bolts for fixing the cabinet to the wall

Installation note

Wall-mounted gas cabinets must be installed at least 150mm below the nearest window or obstruction. This clearance is required to allow the front panel to be removed safely for access to the meter.
