Gas Cabinet No.2 Free Standing – To Suit U16 Low & Medium Pressure Gas Meters

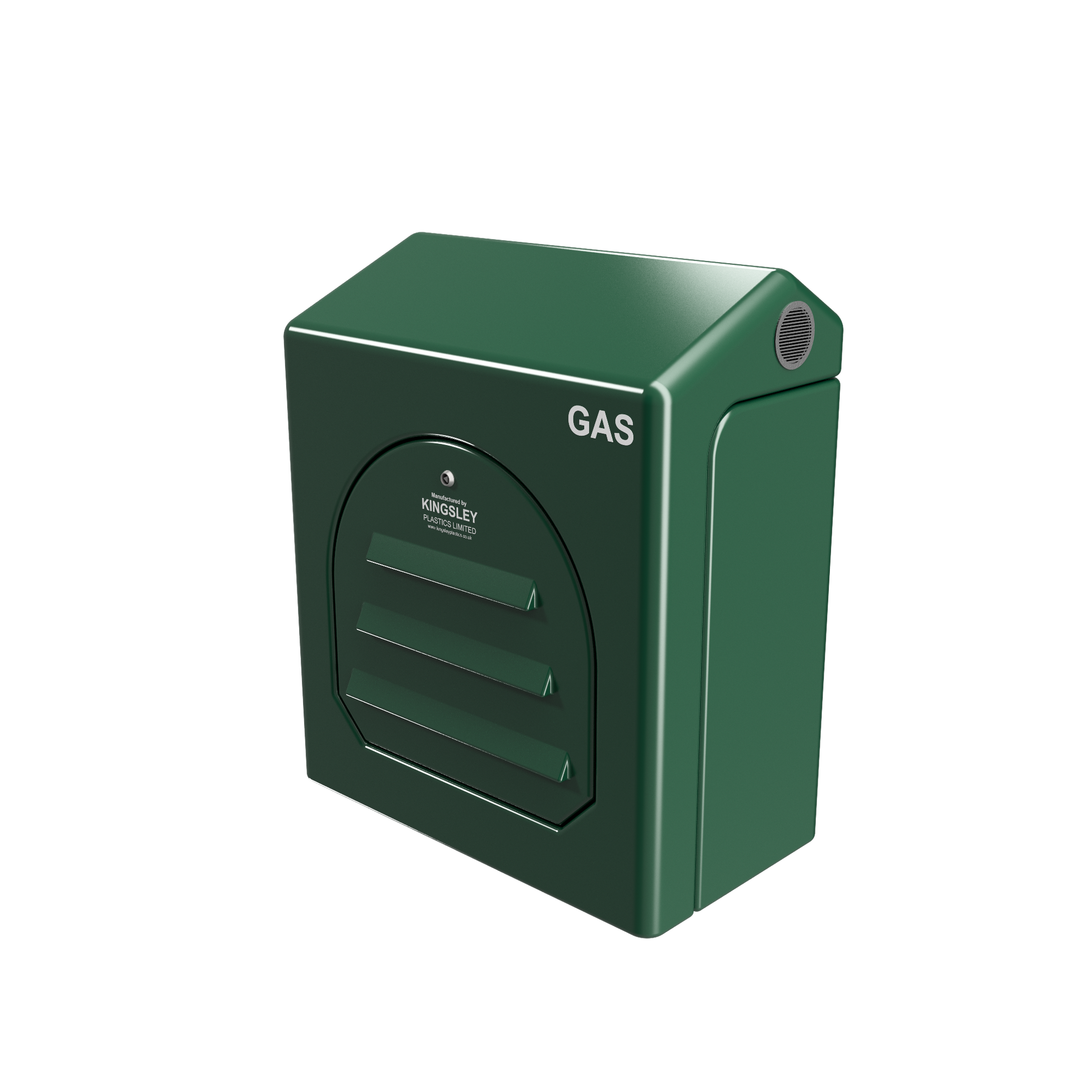

The GC2 Free Standing Gas Cabinet is a GRP gas cabinet designed for installation on a pre-laid concrete base, with external dimensions of 710mm wide x 395mm deep x 830mm high.

Supplied in RAL 6005 Moss Green as standard, the cabinet includes a vented removable door with a triangular quarter turn lock and key. Internal GRP bolt-down flanges and the necessary bolts for fixing the cabinet to a concrete base are also supplied. PRS35 compliant ventilation is included as standard.

• External dimensions: 710mm width x 395mm depth x 830mm height
• Internal dimensions: 700mm width x 350mm depth x 710mm height
• Standard colour: RAL 6005 Moss Green; other RAL colours are available at additional cost and lead time
• Door and locking: Vented removable door with triangular quarter turn lock and key
• Base fixing: Internal GRP bolt-down flanges with bolts supplied for fixing to a concrete base
• Service life: 20-year guarantee for retention of stability, with a stated life expectancy in excess of 20 years

The delivered unit comprises 1 no. GC2 Free Standing Gas Cabinet, 1 no. vented door complete with triangular lock and key, internal bolt-down flanges and the necessary bolts for fixing to a concrete base. The supplied drawing also provides concrete plinth recommendations and identifies four M8 x 75mm anchor bolts, reference AWA08075.
