Out of stock Kingsley GRP Gas Cabinet No.2 Multi-Pressure - U16 Low & Medium Pressure
Kingsley Plastics

Kingsley GRP Gas Cabinet No.2 Multi-Pressure - U16 Low & Medium Pressure

KP-GC2-MULTI
£315.00 +VAT £378.00 inc VAT
Price per unit
Out of stock Contact us and we will confirm the next delivery or suggest an equivalent.

All deliveries to residential postcodes carry a premium. If your delivery address is a residential address please select below.

Quantities above 16 are quoted on a schedule of rates.

  • UK stockManufactured and Stocked in the UK
  • 30-day returnsUnfitted and in original packaging

Description

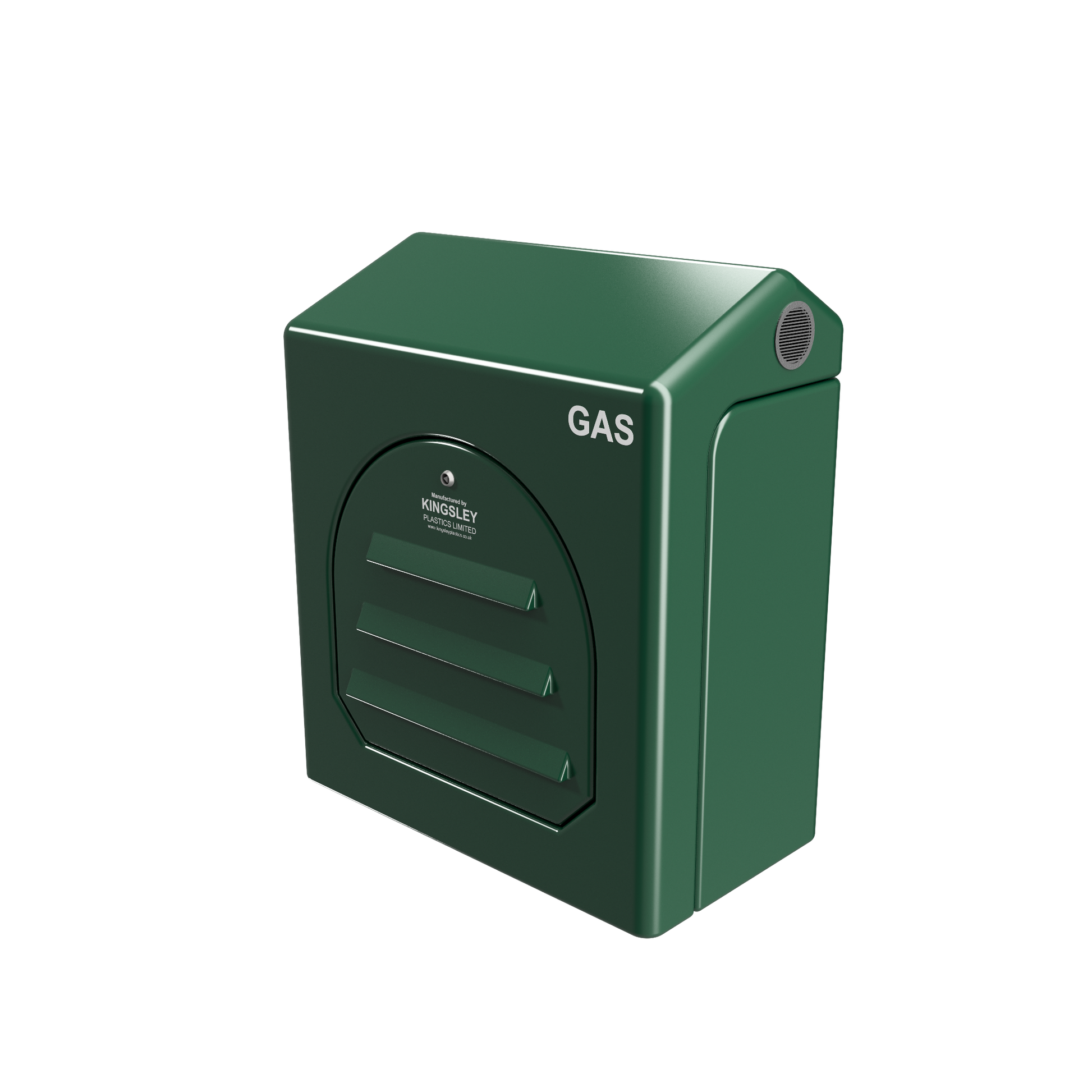

A glass-reinforced plastic gas meter cabinet built for U16 meters at low and medium pressure, supplied with PRS35-compliant ventilation as standard and a 20-year guarantee against loss of stability.

Product Code

KP-GC2-MULTI

Manufacturer Code

GC2-MULTI

Manufacturer

Kingsley Plastics

Meter Size

U16

Pressure

Low and medium pressure

Installation

Wall mounted or free standing

External Dimensions

W: 710mm D: 395mm H: 830mm

Shipping Dimensions

710 x 400 x 830mm

Material

GRP (glass-reinforced plastic)

Standard Colour

RAL 6005 Moss Green

Ventilation

PRS35 compliant (minimum 3%)

Explosion Relief

No

Guarantee

20 years

Download Drawing PDF

Each cabinet ships with a vented removable door fitted with a triangular quarter-turn lock and key. Bolts to a pre-laid concrete base via internal GRP flanges, or to a wall using the internal plywood backboard. All fixing bolts supplied.

Suits both wall-mounted and free-standing installations, so one cabinet covers either method on site.

Supplied in the box:

  • Gas Cabinet No.2 Multi-Pressure
  • Vented removable door with triangular quarter-turn lock and key
  • Internal bolt-down flanges
  • Internal plywood backboard for wall mounting
  • All bolts required to fix to a concrete base

Alternative RAL colours are available to order at additional cost and lead time.

Delivery: Courier, 1-2 working days

Delivery & returns Delivery & pallet terms

Despatched next working day by tracked courier. Free delivery over £75 ex VAT. 30-day returns on unfitted items in original packaging.

Pallet deliveries are kerbside; booked-in slots and timed deliveries by arrangement. Made-to-order items are non-returnable.

You may also need

  • BS 8499

    Domestic gas meter enclosures — dimensions, ventilation and door security.

  • BS 8567

    Domestic electricity meter enclosures — the electric equivalent.

  • PRS 8

    Former National Grid pattern for domestic gas boxes. Still the reference for replacements.

  • PRS 35 (Dec 2008)

    Commercial gas enclosures — minimum 3% free ventilation area and material performance.
