Out of stock Kingsley GRP Gas Cabinet No.3 Wall Mounted - U25 Low Pressure
Kingsley Plastics

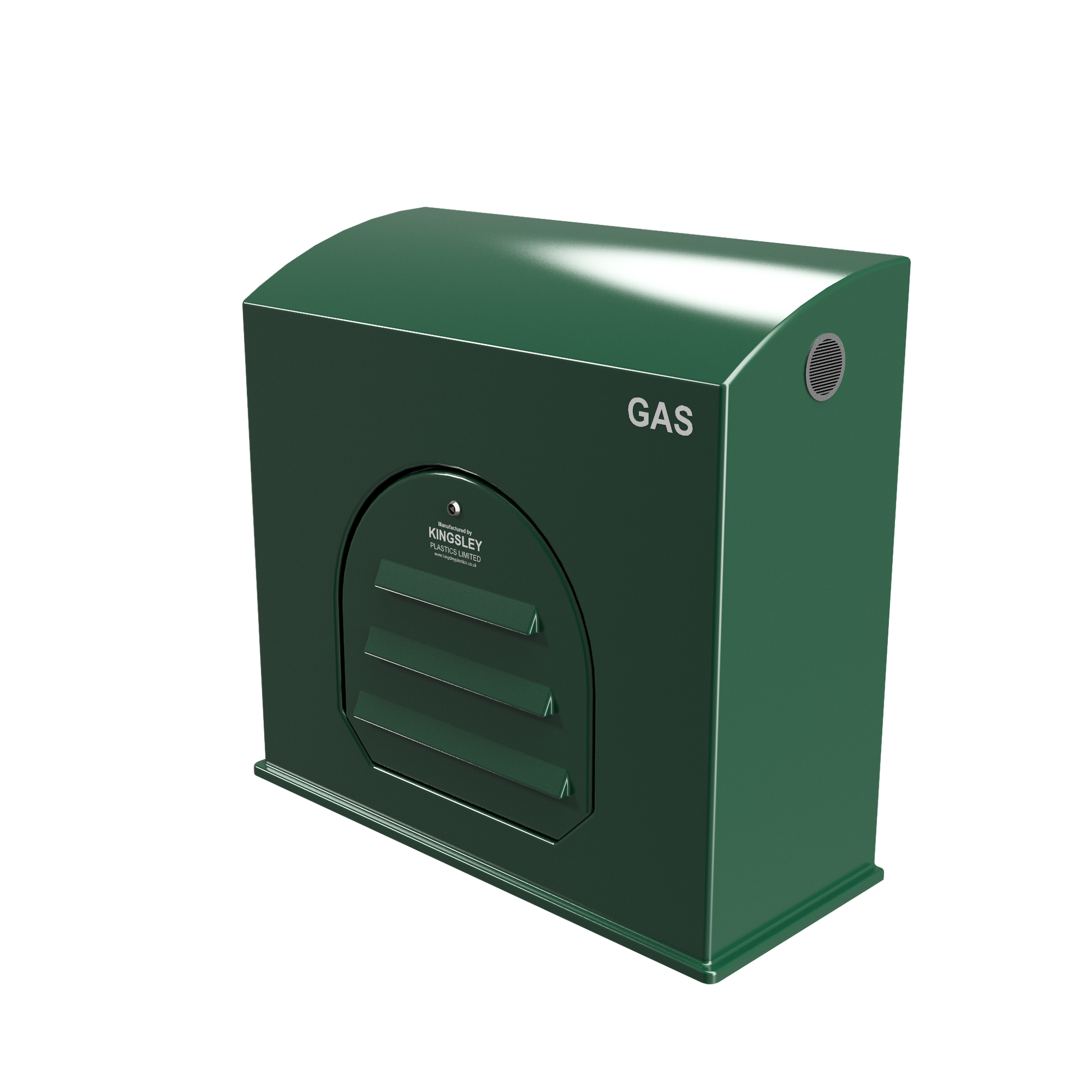

Kingsley GRP Gas Cabinet No.3 Wall Mounted - U25 Low Pressure

KP-GC3-WM
£310.83 +VAT £373.00 inc VAT
Price per unit
Out of stock Contact us and we will confirm the next delivery or suggest an equivalent.

All deliveries to residential postcodes carry a premium. If your delivery address is a residential address please select below.

Quantities above 16 are quoted on a schedule of rates.

  • UK stockManufactured and Stocked in the UK
  • 30-day returnsUnfitted and in original packaging

Description

A glass-reinforced plastic gas meter cabinet built for U25 meters at low pressure, supplied with PRS35-compliant ventilation as standard and a 20-year guarantee against loss of stability.

Product Code

KP-GC3-WM

Manufacturer Code

Gas Cabinet No. 3

Manufacturer

Kingsley Plastics

Meter Size

U25

Pressure

Low pressure

Installation

Wall mounted

External Dimensions

W: 960mm D: 400mm H: 890mm

Shipping Dimensions

950 x 400 x 890mm

Material

GRP (glass-reinforced plastic)

Standard Colour

RAL 6005 Moss Green

Ventilation

PRS35 compliant (minimum 3%)

Explosion Relief

No

Guarantee

20 years

Download Drawing PDF

Each cabinet ships with a vented removable door fitted with a triangular quarter-turn lock and key. Bolts to a wall via an internal GRP backboard. All fixing bolts supplied.

Mount at least 150mm below the nearest window or obstruction so the front panel can be removed safely for meter access.

Supplied in the box:

  • Gas Cabinet No.3 Wall Mounted
  • Vented removable door with triangular quarter-turn lock and key
  • All bolts required to fix to a wall

Alternative RAL colours are available to order at additional cost and lead time.

Delivery: Curtain-sided lorry, 2-3 working days. Offloading facilities needed on site; tail lift available at extra cost.
