SKU:KP-GC4-PLUS
Kingsley Plastics

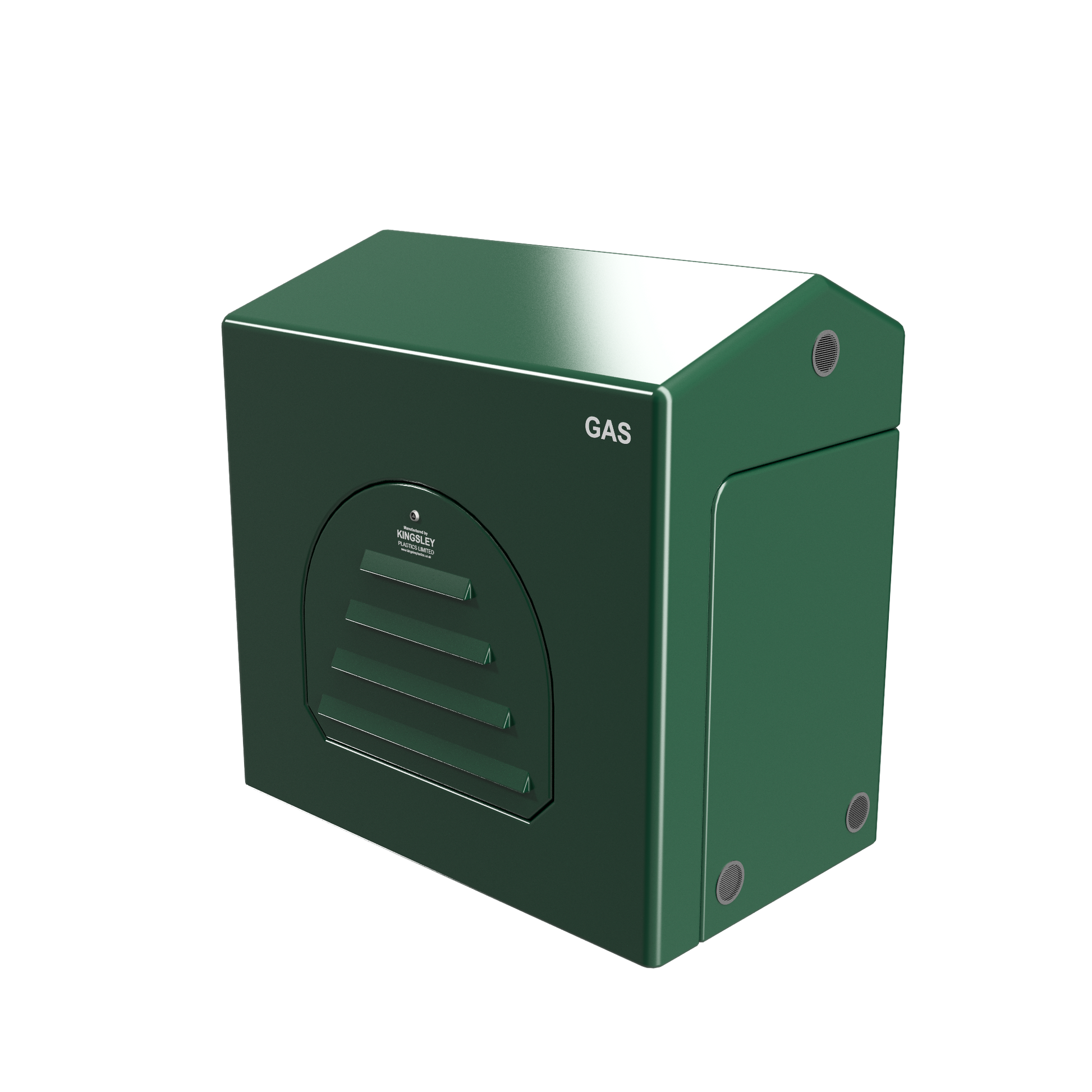

Kingsley GRP Gas Cabinet No.4+ - U40 Medium Pressure
Kingsley GRP Gas Cabinet No.4+ - U40 Medium Pressure
Couldn't load pickup availability
A glass-reinforced plastic gas meter cabinet built for U40 meters at medium pressure, supplied with PRS35-compliant ventilation as standard and a 20-year guarantee against loss of stability.
Product Code |
KP-GC4-PLUS |
Manufacturer Code |
Gas Cabinet No.4+ |
Manufacturer |
Kingsley Plastics |
Meter Size |
U40 |
Pressure |
Medium pressure |
Installation |
Free standing |
External Dimensions |
W: 1200mm D: 745mm H: 1210mm |
Shipping Dimensions |
1200 x 740 x 1200mm |
Material |
GRP (glass-reinforced plastic) |
Standard Colour |
RAL 6005 Moss Green |
Ventilation |
PRS35 compliant (minimum 3%) |
Explosion Relief |
No |
Guarantee |
20 years |
Each cabinet ships with a vented removable door fitted with a triangular quarter-turn lock and key. Bolts to a pre-laid concrete base via internal GRP flanges. All fixing bolts supplied.
Supplied in the box:
- Gas Cabinet No.4+
- Vented removable door with triangular quarter-turn lock and key
- Internal bolt-down flanges
- All bolts required to fix to a concrete base
Alternative RAL colours are available to order at additional cost and lead time.
Delivery: Curtain-sided lorry, 2-3 working days. Offloading facilities needed on site; tail lift available at extra cost.
